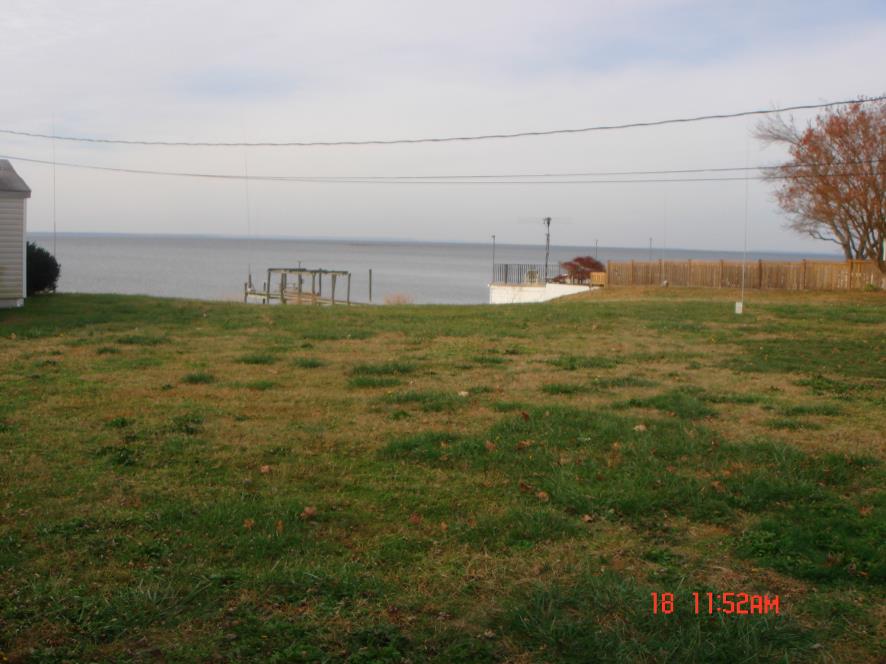

Four Square Receive One to the right, one next to the bust to the left, one next to the fence and one down by the water line. |
|

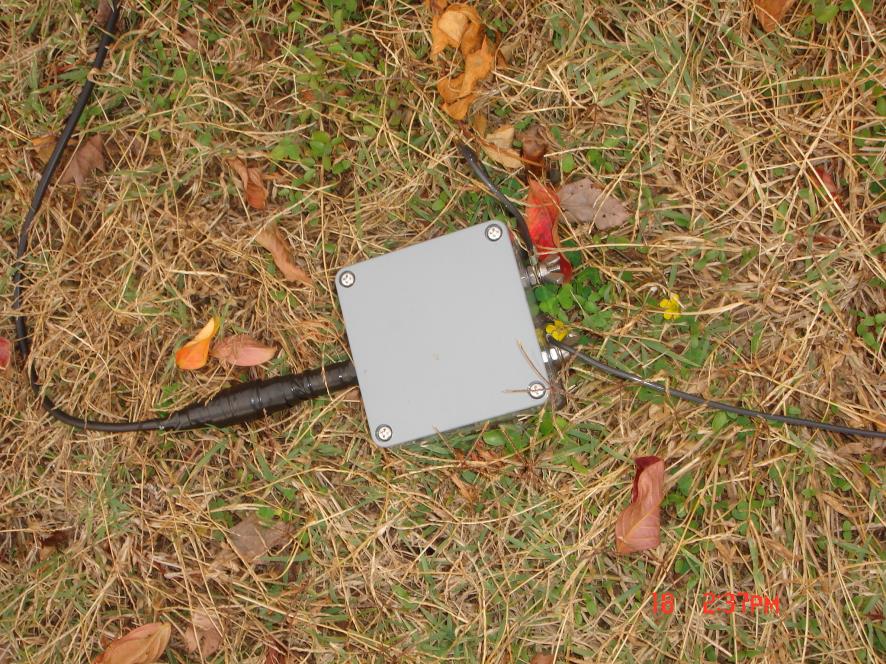

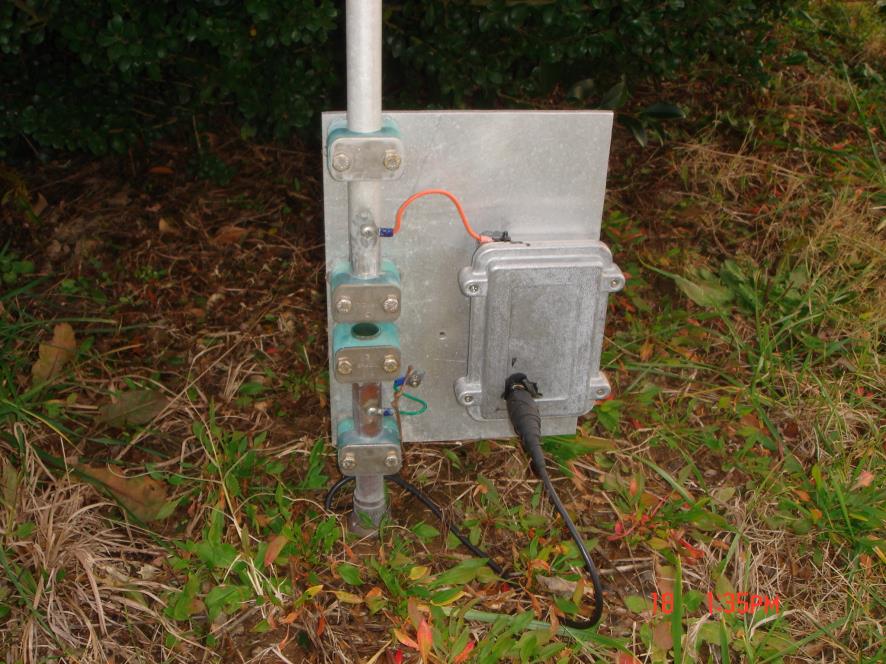

Base of one of the 4 Square receive antennas |
|

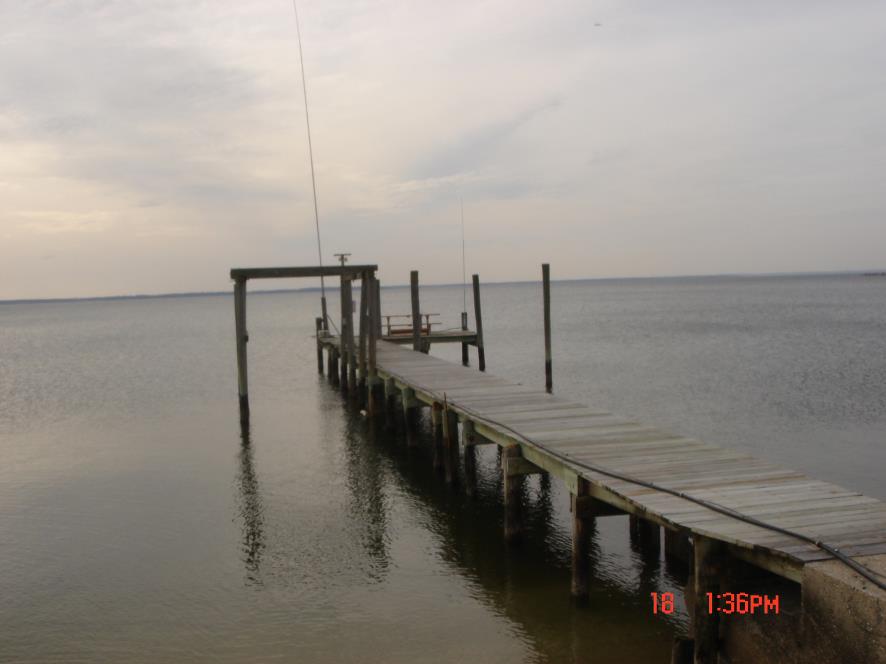

View of verticals from boat house |
|

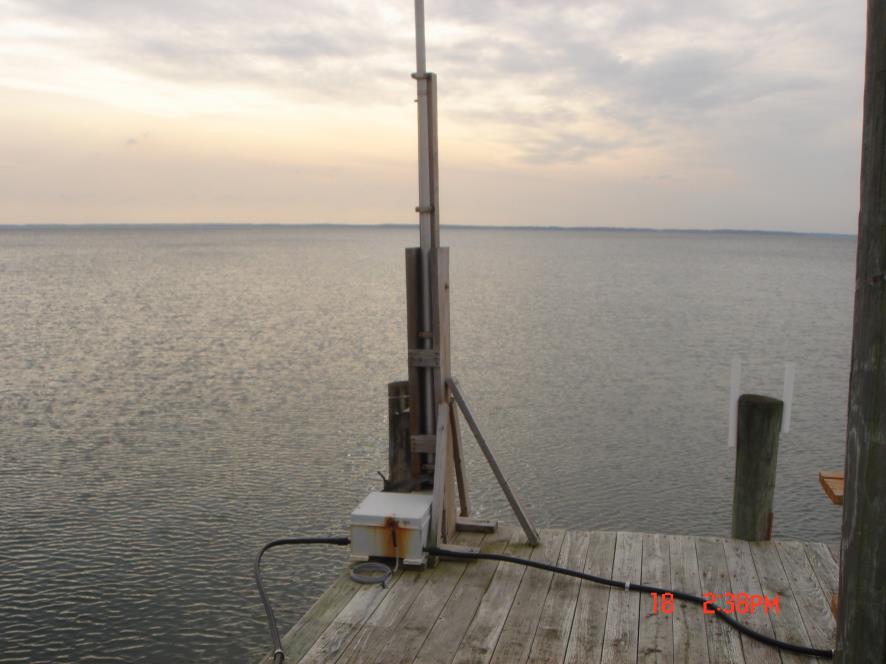

Base of 60 foot self supporting vertical |
|

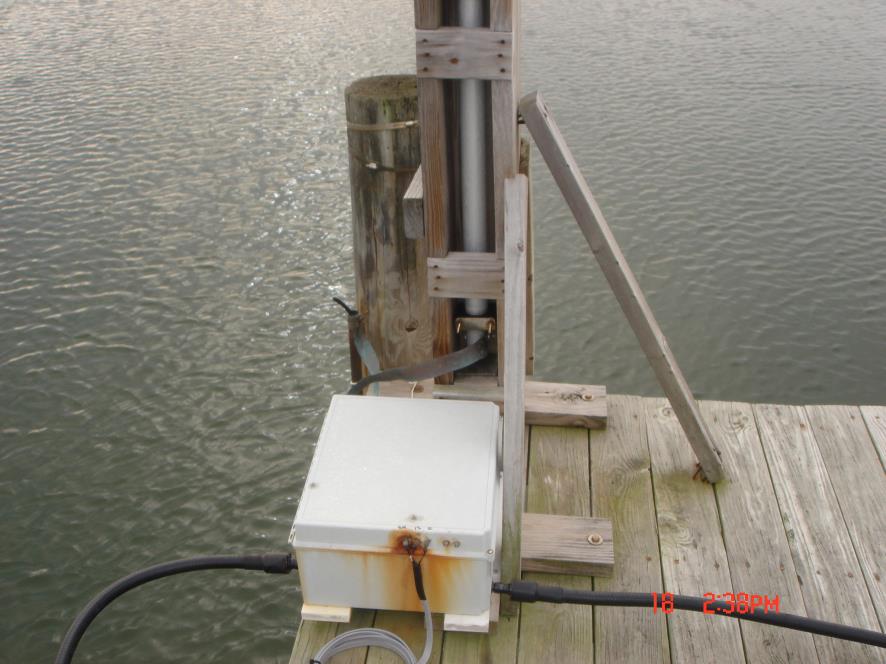

Closeup of base. Often waves break over the base matching box. |
|

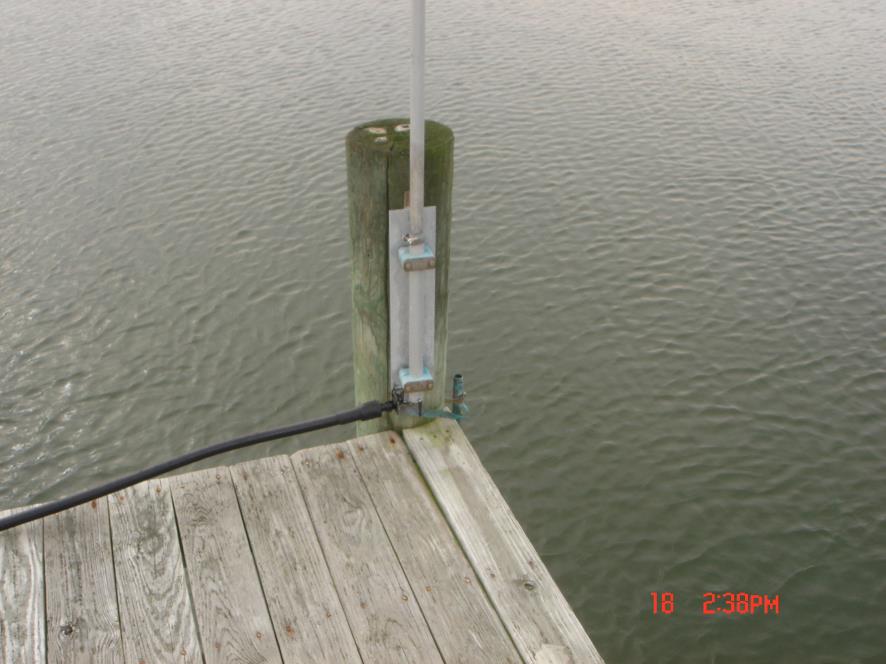

Base of 20 foot vertical. |
|
Other Antenna Stuff. Discone for VHF/UHF SWLing. Yagi for 433 MHZ control link to vertical Matching box on pier. Little cone is GPS Antenna for 10MHz lab reference. |
|

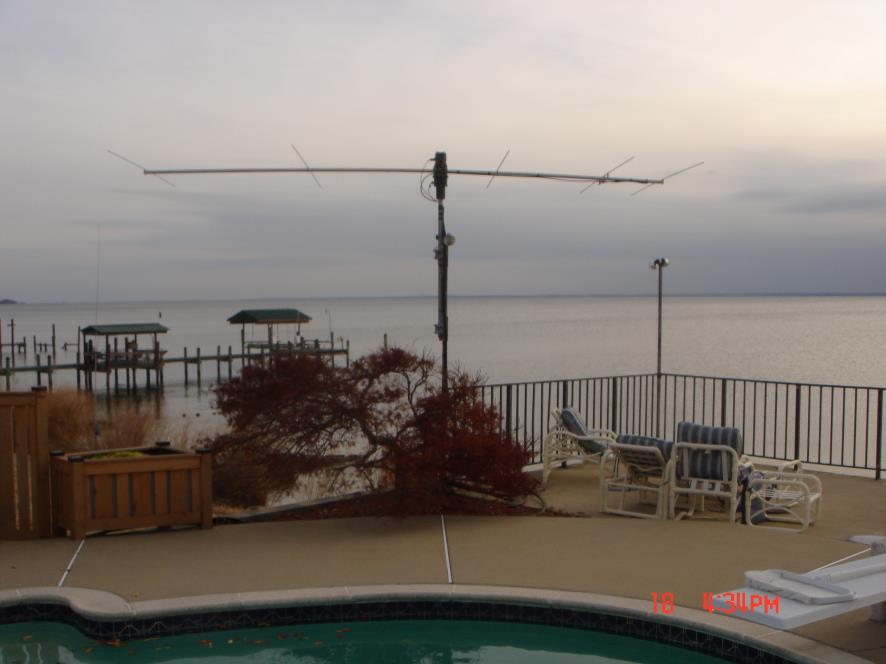

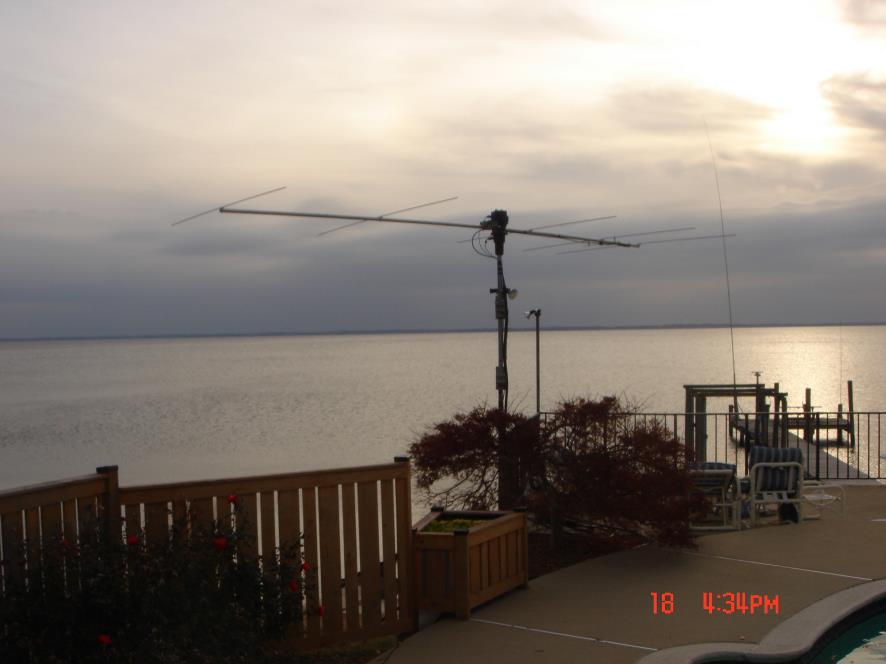

6M5X 6 meter yagi. About 8 feet above the ground to the east (Moonrise) and about 16 feet above sea level (Moonset). |
